Product Description Production Description : Export All kinds of Back Type Rubber Water Stop Blue/Black Deformation seam water stop Belt High Quality pvc water stop Belt in Construction Compound pvc water stop Sealing Belt in Construction Building Engineering Bidding principle and method: PVC plastic water stop by the optimal level of PVC resin and all kinds of chemical add agent, through mixing, granulation, extrusion process and water-stop products made.It takes advantage of polyvinyl chloride resin has elastic deformation characteristics in the tectonic seam leakage, seepage prevention effect, and has the features of corrosion resistance and good durability. Specification: 280 * 6,300 *4, 300 * 6,300 *8,300 * 10,350 * 8,350 * 10, etc.
Usage:
Bailey is mainly used in PVC plastic concrete set within the construction joint and deformation joint and concrete form for the integration of basic engineering.Such as, dam, tunnel, tunnels, water diversion aqueduct liquid structures, underground facilities, etc.Plastic water stop it make full use of polyvinyl chloride resin has elastic deformation characteristics in the tectonic seam leakage, seepage prevention effect, and has the features of corrosion resistance and good durability.
Method of construction:
PVC plastic water stop construction method and construction method of the is the same.When pouring buried interface to make it with concrete joint level off, the joint part of adhesive binding, watering the buried with appropriate force in the process of vibrating concrete fully, make it combined with concrete is good, in order to obtain the best effect of water stop. Construction attention:
Positioning in the plastic water stop, want to make it with concrete interface joint level off, can't appear water-stop flip, the phenomenon such as distortion, otherwise shall promptly carry out adjustment.Fixed pouring water stop, should prevent the water-stop migration, influence water effect.Check hose connector available bonding, welding method, ensure the joint firm.Should pay attention to during the process of pouring concrete vibrating fully, bailey and concrete combine in order to achieve.
Physical properties parameter of Rubber Water-stop Belt |
no | Items | index |
B | S | J |
1 | Rigidity, HA | 60±5 | 60±5 | 60±5 |
2 | Tensile strength ,MPa ≥ | 15 | 12 | 10 |
3 | Snap and elongation,% ≥ | 380 | 380 | 300 |
4 | transmutation | 70ºC×24h,% ≤ | 35 | 35 | 35 |
23ºC×168h,% ≤ | 20 | 20 | 20 |
5 | Tear strength 21 ,KN/m ≥ | 30 | 25 | 25 |
6 | Brittleness temperature,ºC ≤ | -45 | -40 | -40 |
7 | Air aging 31 | 70ºC×168h | Rigidity, HA ≤ | 8 | 8 | -- |
Tensile strength, MPa ≥ | 12 | 10 |
Snap and elongation,% ≥ | 300 | 300 |
100ºC×168h | Rigidity, HA ≤ | -- | -- | 8 |
Tensile strength, MPa ≥ | 9 |
Snap and elongation,% ≥ | 250 |
8 | Ozone ageing 50pphm: 20%, 48h | 2grade | 2 grade | 0 grade |
9 | Rubber and metal bonding | In vivo sections flexibility |
Remark: |
1 rubber and metal bonded items apply only to the edge of water-stop which include steel. |
2 demand and supply can discuss about the question if there is OTHER special needs, such as mold assessment test, but the anti-mildew properties should be equal or higher than two grade. |
Packaging & Shipping Pakage&Delivery Compound pvc water stop Sealing Belt in Construction Building Engineering Bidding Packaging Detail: in rolls then in carton or wood box, also can according to customers' request Delivery Detail: within 7days after receiving payment Our Services Our Service: Compound pvc water stop Sealing Belt in Construction Building Engineering Bidding Sample Time: (1)3-5days if you want to customize your logo (2)2days for our existing samples for reference Advantages:

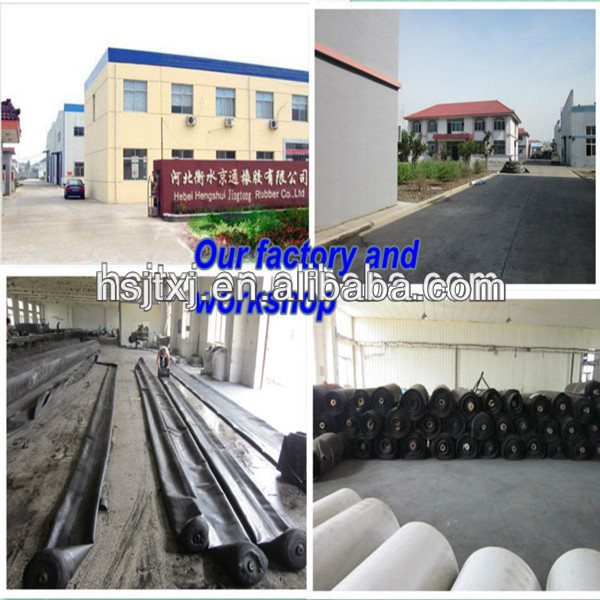

1. High expansion rate, strong mobile supplementary 2. Strong self-healing, can plug tiny cracks resulted from Concrete shrinkage and settlement 3. Simple, convenient and reliable operation, best corrosion resistance, 4. Can provide a variety of specifications according to the need of design and construction. Company Information Company Introduction: Compound pvc water stop Sealing Belt in Construction Building Engineering Bidding 1. Self-research and development, professional, innovation-oriented company 2. The most specialized products and technology 3. Professional products and technical system and perfect service system 4. "Innovation, profession, loyalty, happiness" is our team theme
5.The company's products are sold out all over China, and exporting to more than 30 countries and regions,e.g. USA, Britain, Germany, Korea, Russia, Iran, Kuwait, Brazil, Argentina, Venezuela, Indonesia, Malaysia etc.
6.We won the widespread praise from the domestic & overseas customers. 7.We forever adhere to the tenet: Customer first, People-oriented, Integrity-based, Continuous innovation.
We'll offer best products and service, good price to our clients forever!
Contact us if you need more details on black checkered water astop sealing belt. We are ready to answer your questions on packaging, logistics, certification or any other aspects about pvc water stop Sealing Belt in Construction Building Engineering Bidding、Blue\/Black Compound pvc water stop Sealing Belt. If these products fail to match your need, please contact us and we would like to provide relevant information.
